SPECIFICATIONS

Scanning Mode: Blue Light(Blue 7-line laser)
Accuracy: Up to 0.02mm @ 100mm
3D Resolution: 0.02-2mm
Scanning Speed: Up to 60fps
Min. Scan Volume: 5mm x 5mm x 5mm
Single Capture Range: 270mmx170mm@300mm
Working Distance: 150mm-400mm
Color Mapping: Yes
Alignment Modes: Marker
3D imaging camera resolution: 1920x1200
Color Supplemental Light: 12 white LEDs

Features:

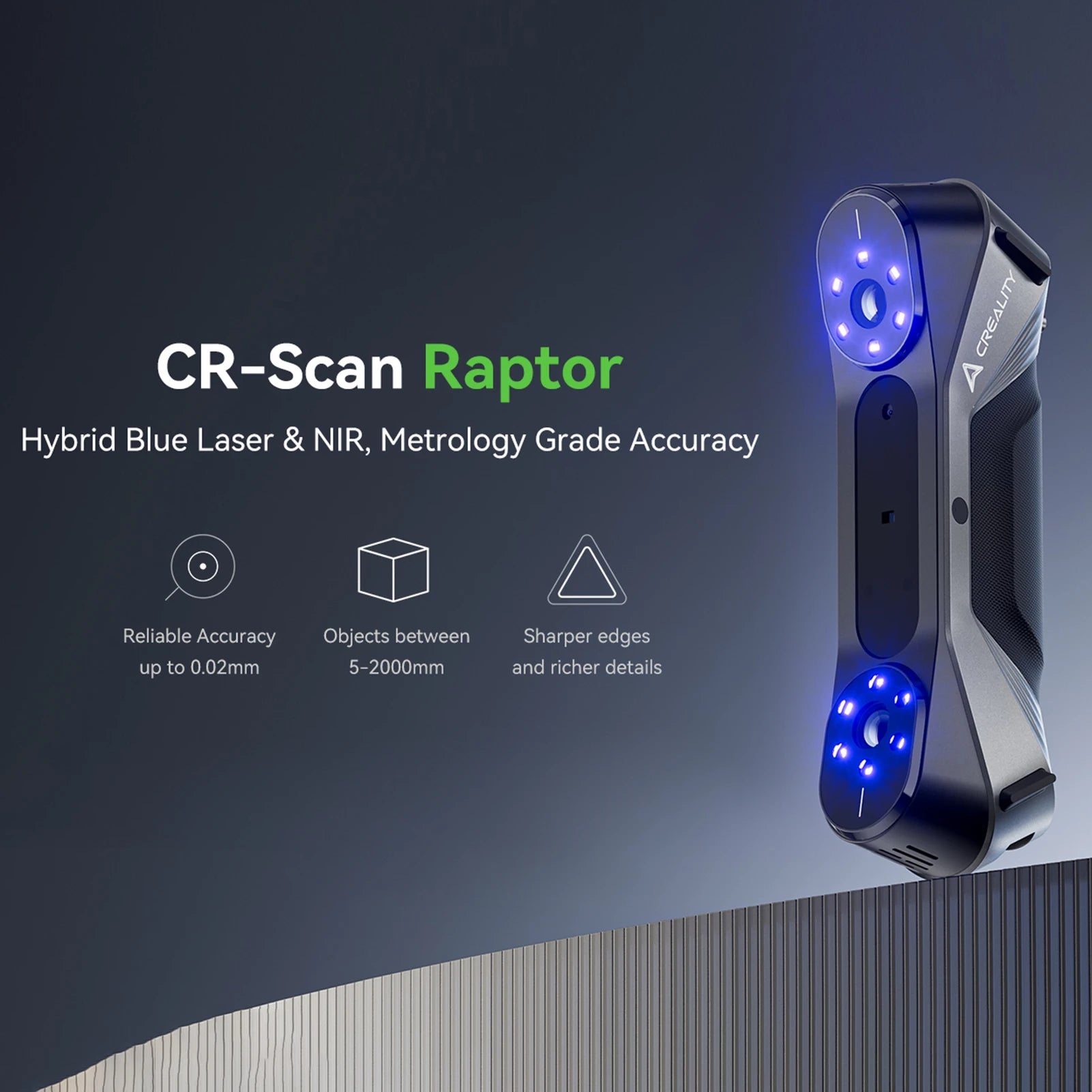

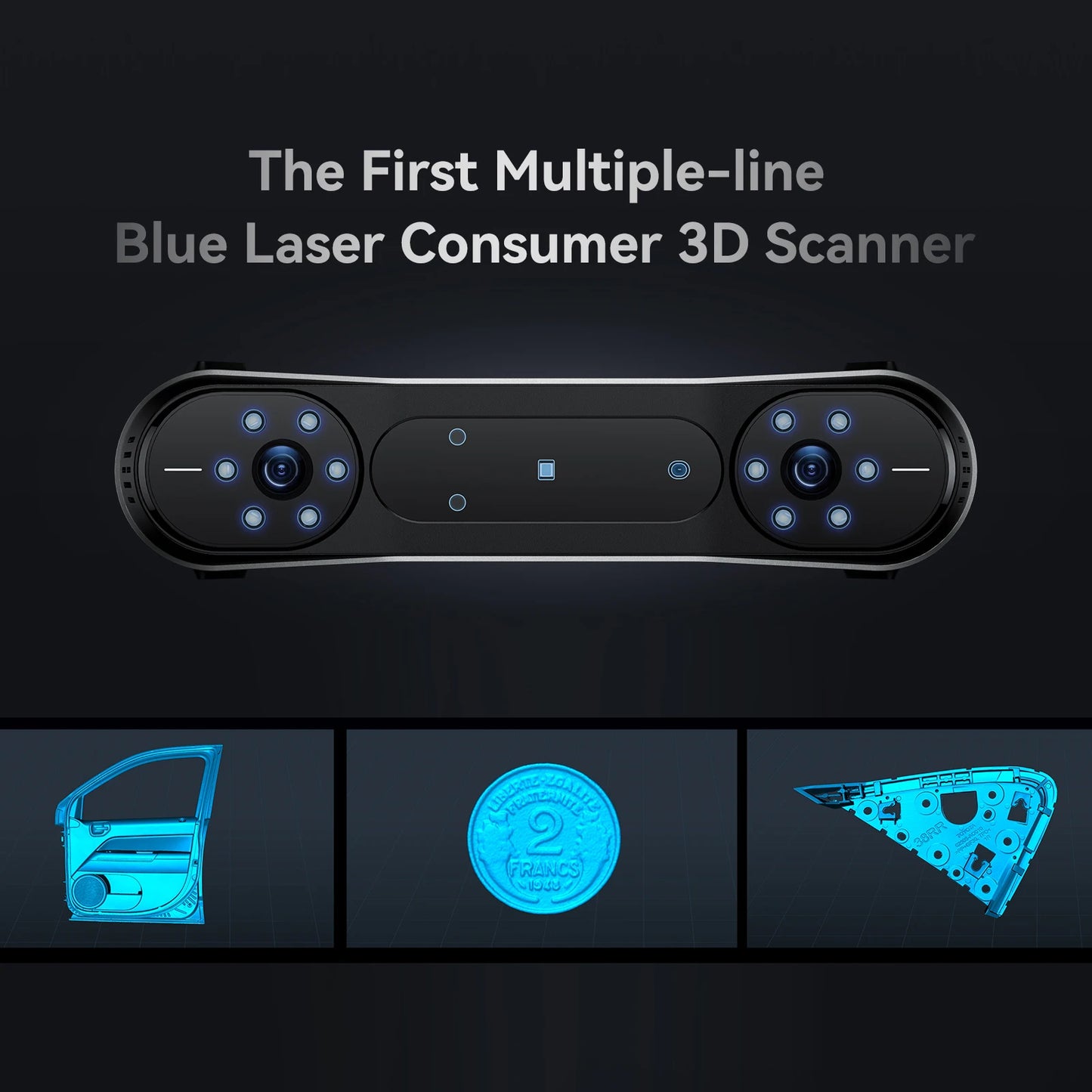

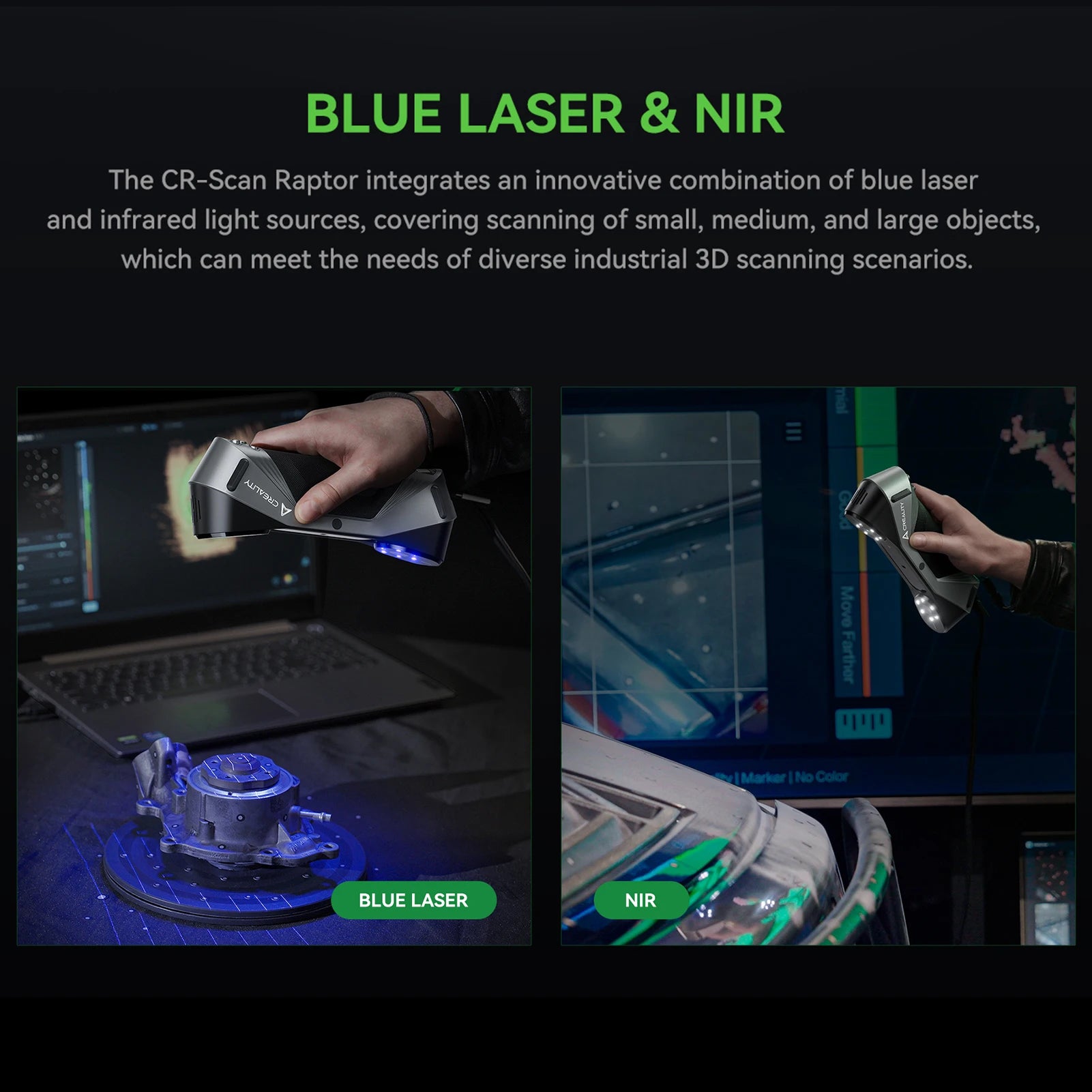

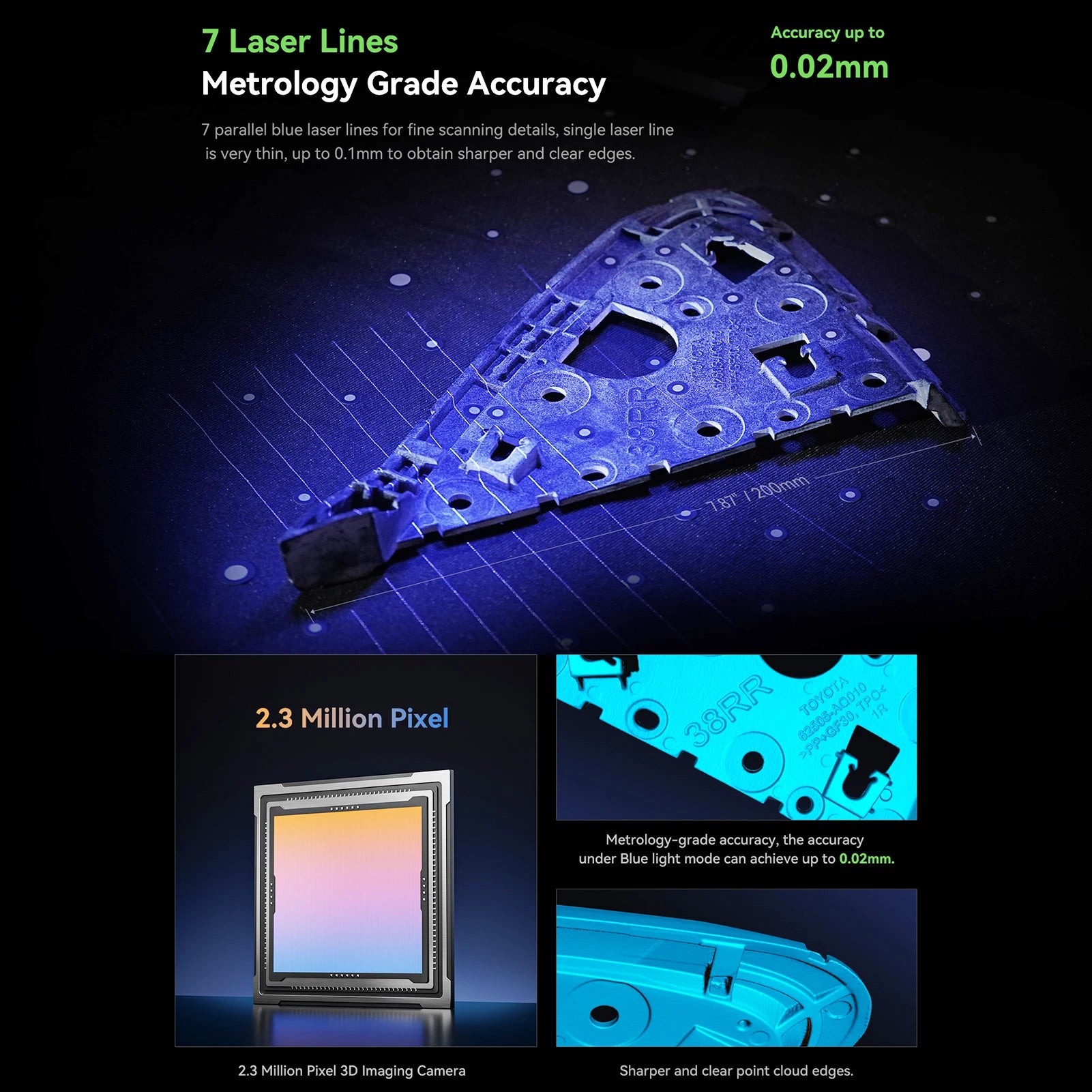

【The First Multiple-line Blue & NIR Consumer 3D Scanner】Creality CR-Scan Raptor Scanner integrates an innovative combination of blue infrared light sources, covering scanning of small, medium, and large objects, which can meet the needs of diverse industrial 3D scanning scenarios. 7 parallel blue lines for fine scanning details, single line is very thin, up to 0.1mm to obtain sharper and clear edges. The scanning accuracy up to 0.02mm ensures every detail is sharp and clear.

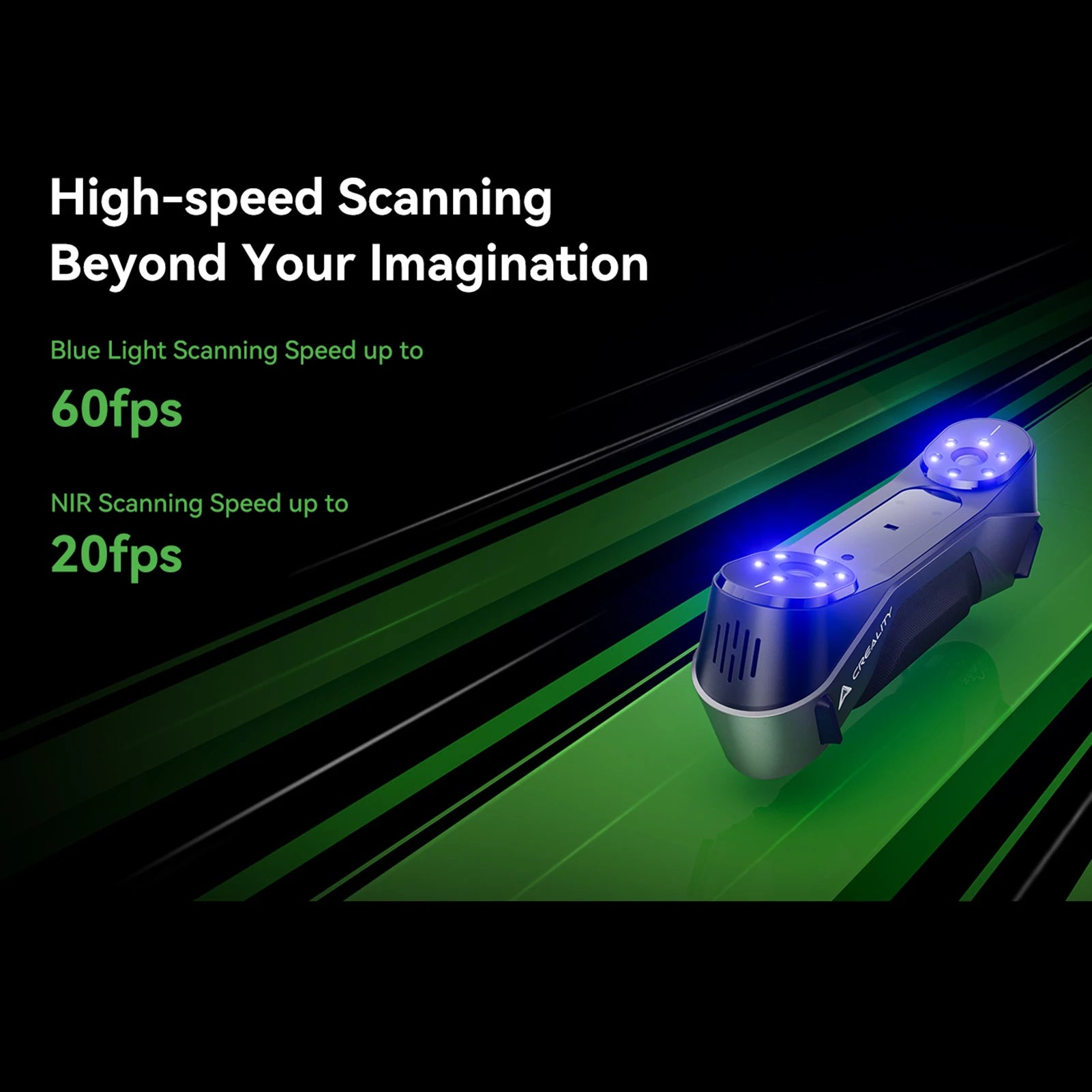

【High-Speed Scanning】 Blue light scanning speed up to 60fps, NIR scanning speed up to 20fps. Combining line with infrared structured light, the scans object ranging in size from 5*5*5 mm,-2000*2000*2000 mm, effortlessly scanning small figurines, bolts, faces, human bodies, automobile components, and more, versatile scanning for all sizes. The CR-Scan Raptor utilizes speckle matching 3D imaging. No markers needed for feature-rich workpieces. Objects can be scanned quickly and directly.
【Anti-shake, Smooth and Efficient Scanning】 Equipped with One-Shot 3D imaging technology, it is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning. At the same time, the lens has an autofocus feature to make sure that you don't have a bad scanning experience such as lost frames or defocus during scanning.
【24-Bit Full-Color Scanning】Raptor 3d scanner equipped with 12 circular LED texture lights, it can enhance the brightness of color mapping in dark environments and truly present the color of objects. Dual-color circular LED texture lights can help achieve more realistic scanning results. Blue Light provides supplementary light for laser line scanning. White Light used to enhance the brightness of color textures.
【More Updates】1. Even without scanning spray, you can scan cars, car parts, tires, and other black/metal objects to get the desired model effect; 2. The body is equipped with buttons, ring indicator light providing real-time scanning status feedback; 3. High precision glass calibration board, utilizes high-precision glass substrate calibration board for accuracy calibration, user can maintain the high precision of the scanner, maintain accuracy.
【Cross-platform Compatibility】Compatible with Windows 10/11 (64 bit) and macOS. CrealityScan is a professional 3D scanning software with excellent user-friendliness and powerful image and point cloud processing capabilities. With its step-by-step tutorials, one-click model processing and model editing features, it can easily kick-start your effortless scanning journey.

Packing List:
1 x 3D CR-Scan Raptor Kit
