SPECIFICATIONS

• Material: ABS
• Cable Type: CAT5/CAT6
• Voltage: 60V
• Package Weight: 586g / 20.67oz

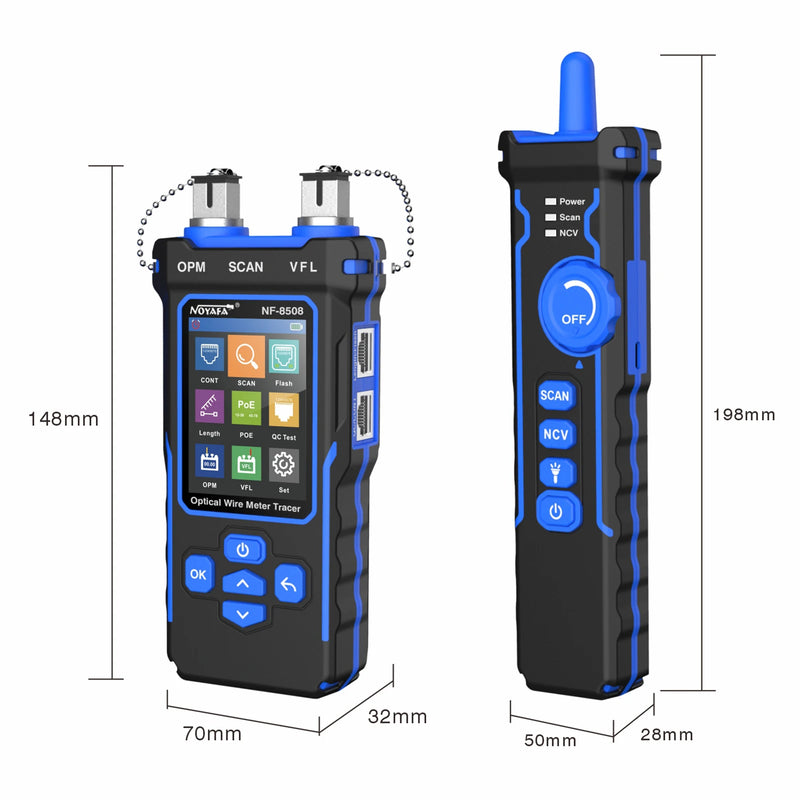

• Package Size: 24 * 16.5 * 5.5cm / 9.45 * 6.50 * 2.17in

  Features:

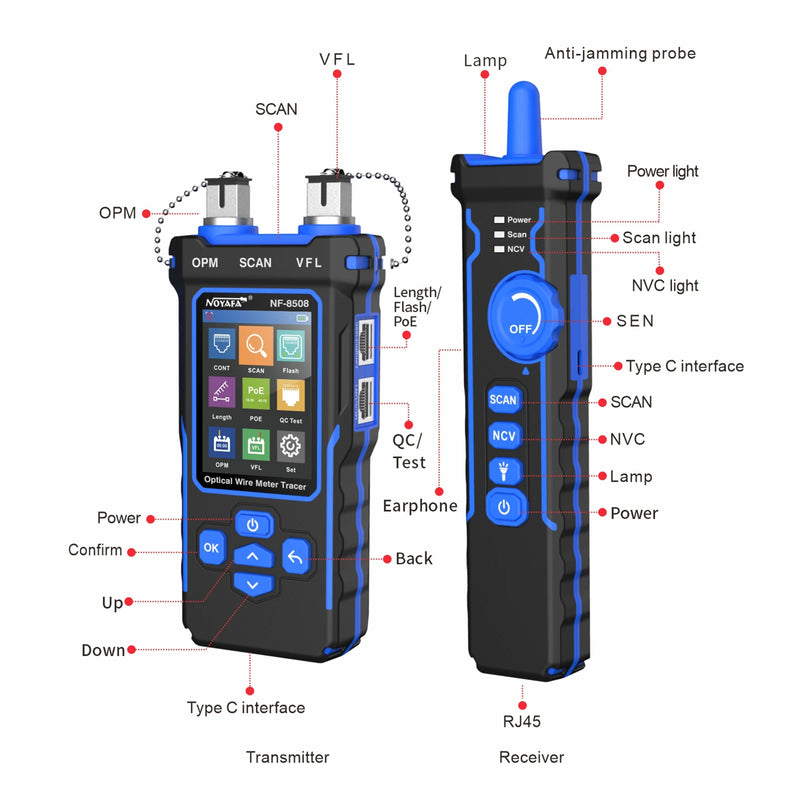

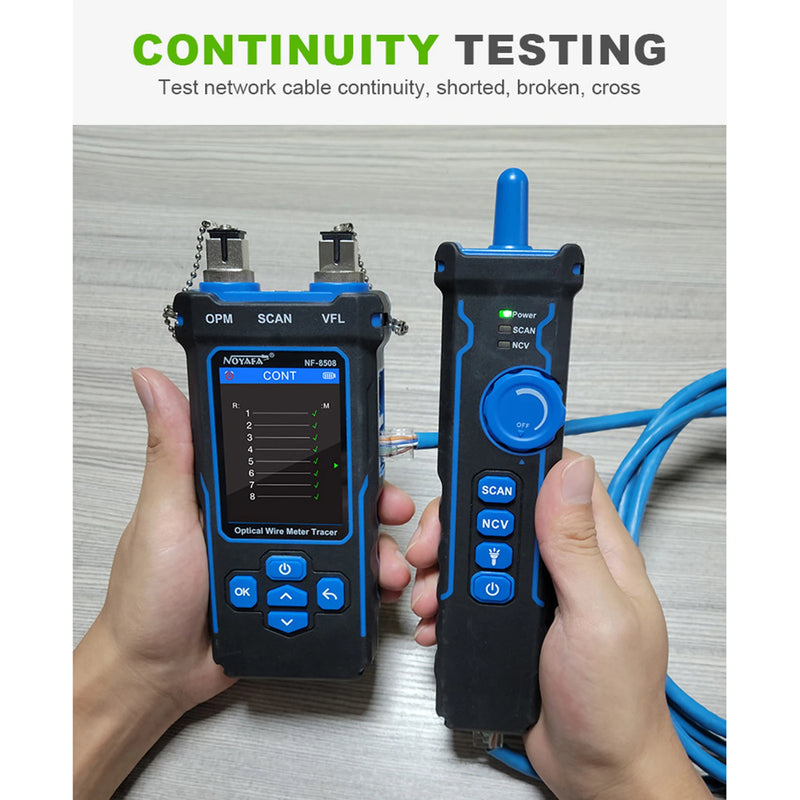

  Transmitter Testing Function: including cable continuity testing, cable scan, port flashing, cable length measurement, PoE test, QC testing for crystal head, OPM(optical power meter) and VFL(visual fault location) function.
  POE Test: automatic identification of midspan/endspan/power by 8 cores, automatic identification of standard and nonstandard device.
  Optical Power Meter: 850/1300/1310/1490/1550/1625nm wavelength switching; unit switching at dBm, dB, or mw, uw, nw; and REF switch.
  Visual Fault Location Function: detect and locate fiber breaks, as well as problems such as poor connections, fiber bends or cracks.
  Receiver Function: sensitivity adjustment, 300m no-load shielded network cable/non-empty shielded network cable, NCV detection, lighting function, etc.
  Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring.
  Illuminate Function: the receiver designed with lamp for auxiliary lighting up the working areas during operation.
  Battery Operated: both the transmitter and the receiver are built-in with 1500mAh polymer battery, no need to change batteries, type-C charging, with charging indicator and low battery indicator.
  Other Settings: backlight brightness(level 1/2/3), backlight time(MAX/1min/30S/15S), auto-off time(15min/30min/1h/2h/off), red light flash under VFL function(fast flashing/slow flashing/ON).
  Wide Applications: suitable for the network line engineering and maintenance work of telecommunication, computer, other metal conductor, etc.

  Package List:
  1 * Transmitter
  1 * Receiver
  1 * RJ45 Adapter Line
  1 * RJ11 Adapter Line
  1 * Crocodile Clip Test Line
  1 * Type-C Data Cable
  1 * Earphone
  1 * Carry Bag
  1 * Manual (English)
